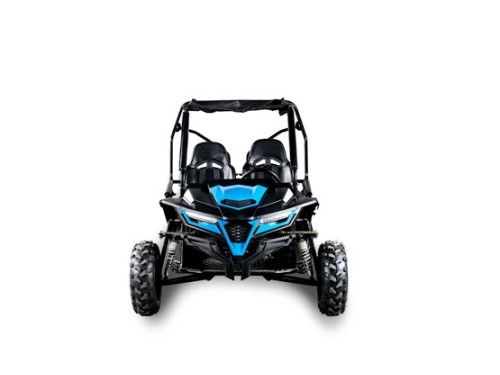

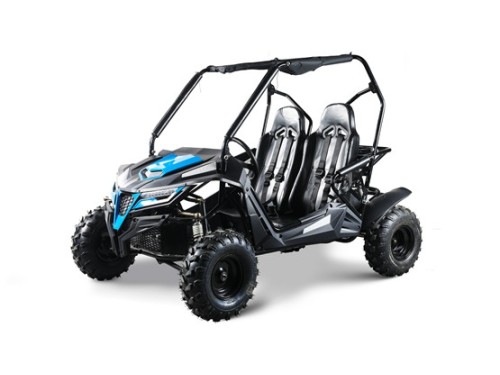

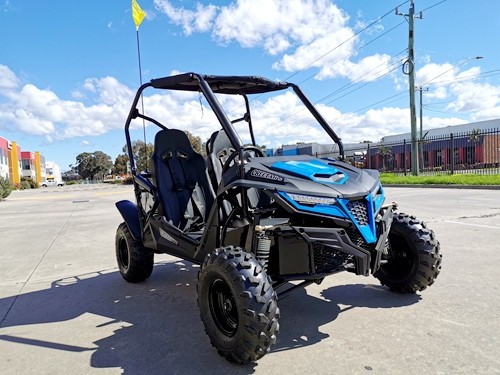

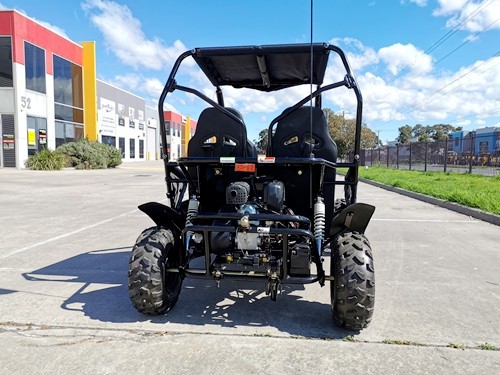

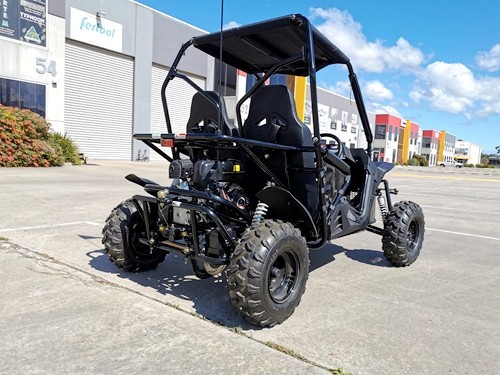

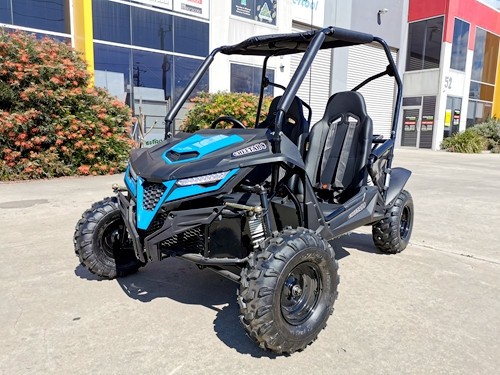

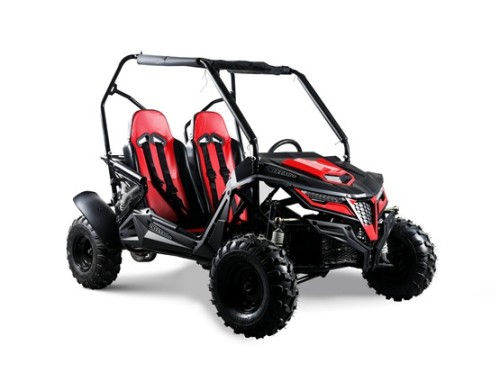

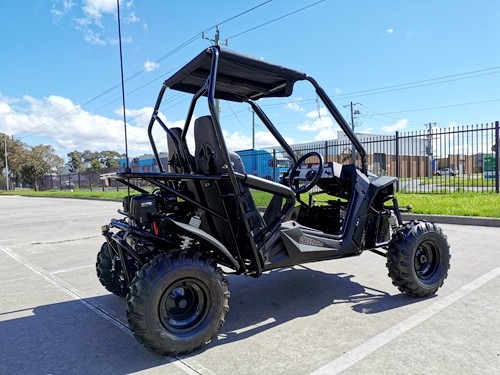

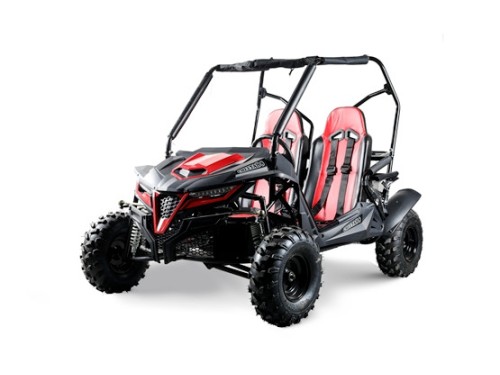

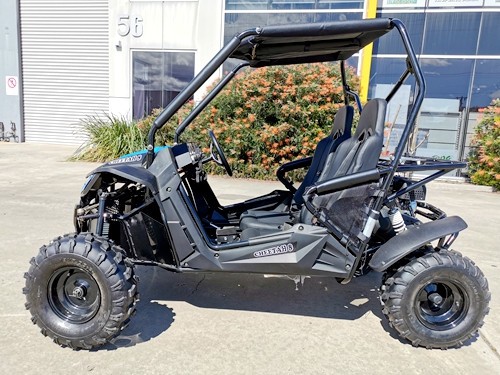

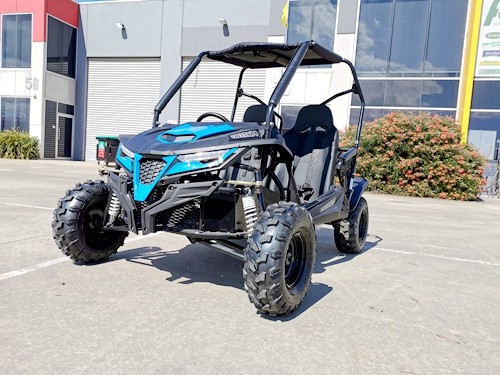

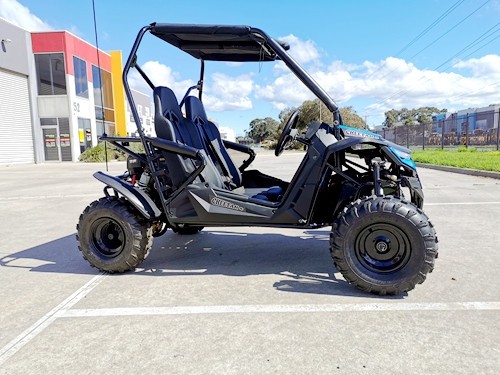

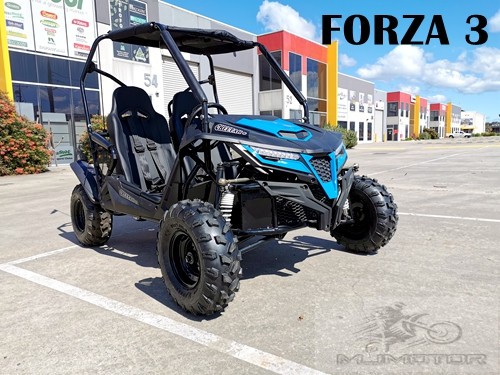

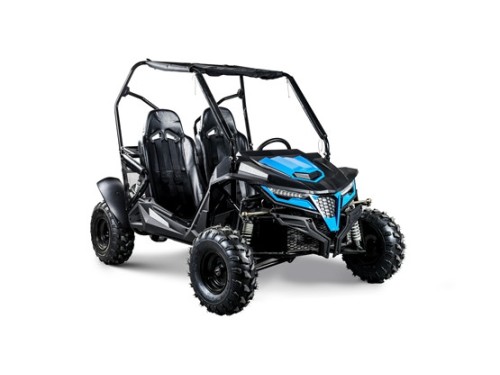

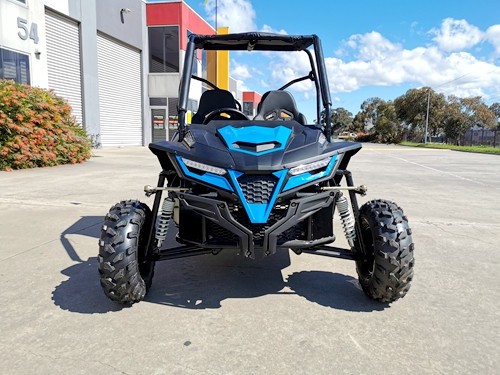

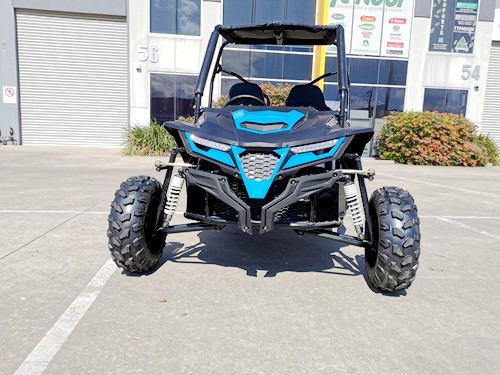

Latest buggy model FORZA 3

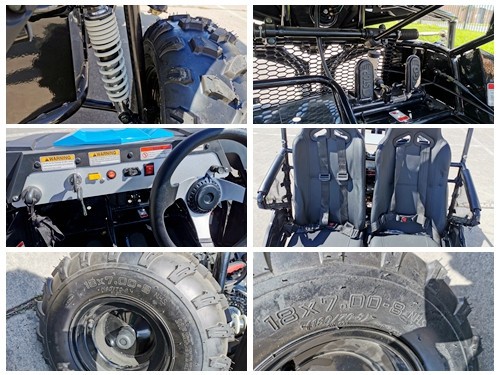

Features:
- Right-hand drive
- 208cc/7.5hp engine
- Adjustable seat of driver side
- Hydraulic rear disc brake
- Electric key start and pull start
- Auto with the reverse gear
- Led headlight
- Adjustable speed governor behind the pedal
- Emergency kill switch mounted to dashboard
- Horn
- Torque converter
- Reverse gearbox
- 3 Points seat belts
- Front bull bar
- Bigger 8 inch knobby wheel tyres.

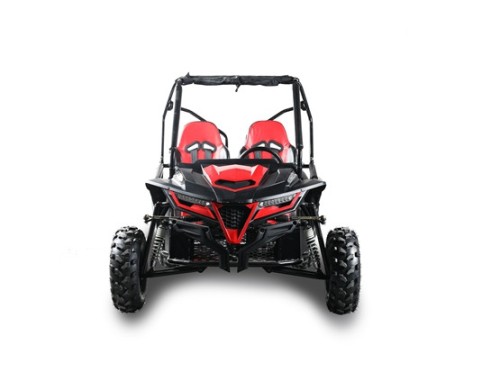

Color: Blue, Red
Specifications
Buggy dimensions: 1950x1290x1430mm LxWxH
Packing size: 2000x1150x660mm LxWxH
Net/gross weight: 182kgs/202kgs
Max loading: 180kgs
Front wheel centre distance: 1120mm
Rear wheel centre distance: 940mm
Pedal to seat back: 820-960mm
Min ground clearance: 100mm
Max speed: 45km/h
Climbing ability: 15 degree

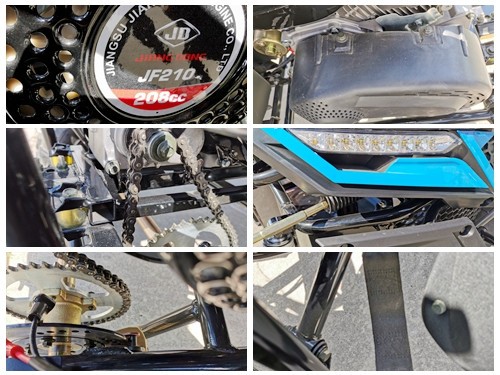

Engine model: JF210 4-stroke ,air-cool,single cylinder
Displacement: 208cc
Bore x Stroke: 70mm x 54mm
Compression ratio: 8.5:1
Fuel supply method: fuel switch/gravity
Carburettor: P19
Power: 5.5kw/3600RPM , 7.48HP
Torque: 11.2N.M/2800RPM
Ignition mode: transistor contactless ignition
Start mode: Pull and electric start
Lubrication mode: splash
Spark plug model: FR7TC
crankcase lubrication oil model: SAE 10W/40
Fuel tank capacity: 3.6L
Transmission mode: CVT
Gearbox: external reverse
Clutch: Auto
Battery model: YTX12-BS 12V10AH
Fuse:15A
Front and rear wheels: 18x7-8 8 inch wheels
Tyre pressure: 80-100kpa
Front suspension method: double A arm independent suspension
Rear suspension: Rear axle with double A and double shock absorbers
Driven mode: rear wheel driven
Shipping cost:
Please send me your postcode/suburb then we will quote a shipping rate asap. Most items will be sent to your local depot. Home delivery will cause an extra fee.
Assembly:
This buggy comes in a crate, assembly requests. Please install wheels/mudguard/seats/top roll cage, etc.
Questions please email: info@mjmotor.com.au
Questions please call : 03-9706 6761
