TAV40 Series Torque Converter Kit Go-Kart ATV Bike 8-18HP Engine Buggy 25.4mm

TAV 40 Series Torque Converter Kit (TAV40)

Brand-new heavy-duty torque converter kit --TAV 40 Series. It will fit our 9hp drift trikes and go karts.
Designed for go-karts, dune buggies, minibikes, and other small off-road vehicles running 8 HP – 18 HP engines.

⚙️ Product Features

• Type: Continuously Variable Transmission (CVT) Torque Converter

• Model: 40 Series / TAV-40 (also known as TAV40)

• Compatible Engines: 8 HP – 18 HP

• Driver Shaft: 1″ (25.4 mm) straight shaft with ¼″ keyway

• Chain Type: #428

• Material: Heavy-duty cast aluminium & steel construction

• Finish: Corrosion-resistant coating for long service life

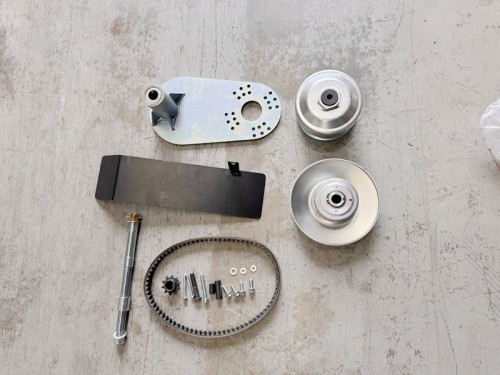

? Package Includes

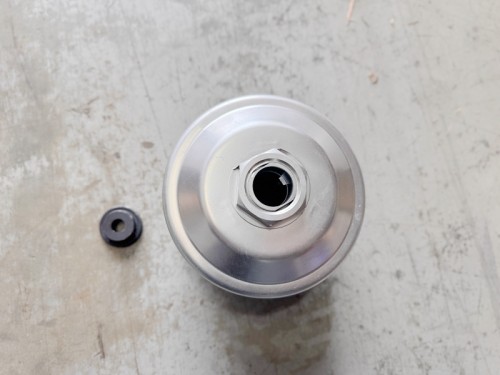

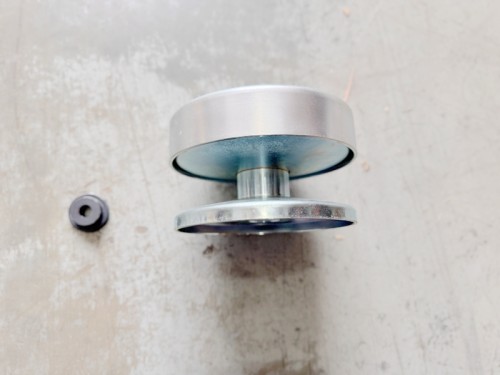

1 × Driver clutch (engine side)

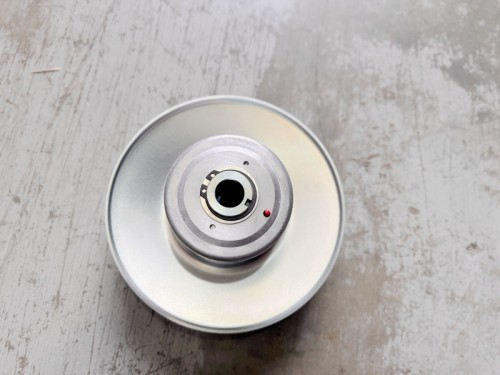

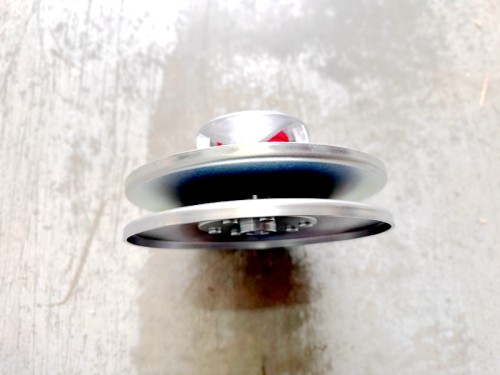

1 × Driven pulley (jackshaft side)

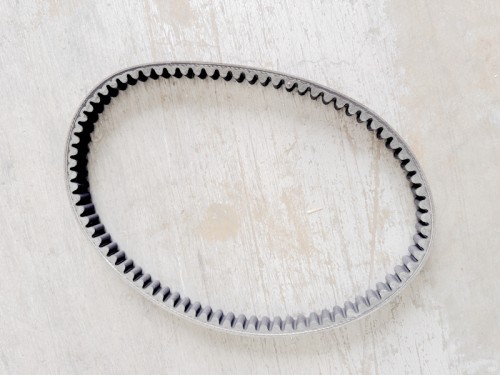

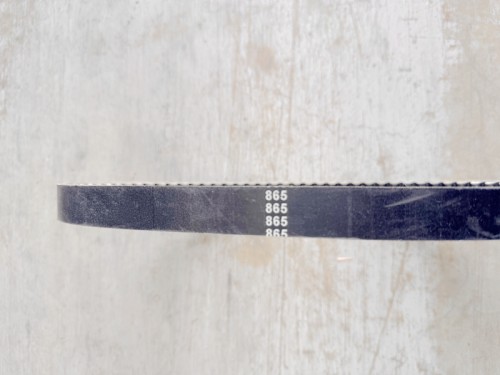

1 × High-performance V-belt

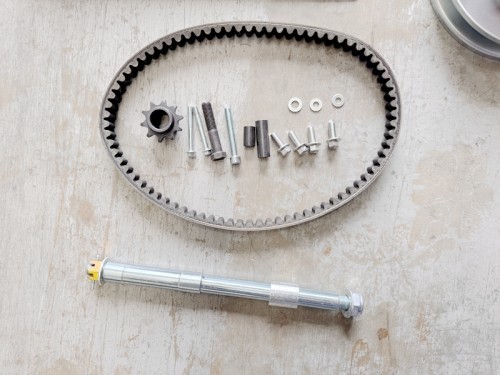

1 × Jackshaft & sprocket #428 10 teeth

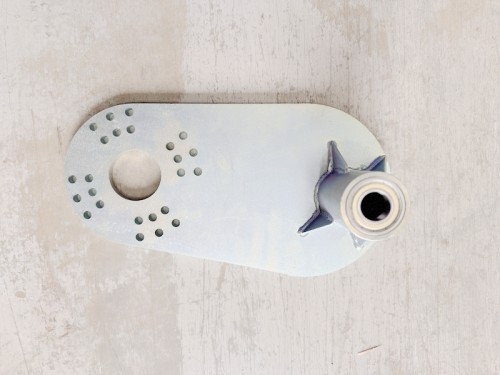

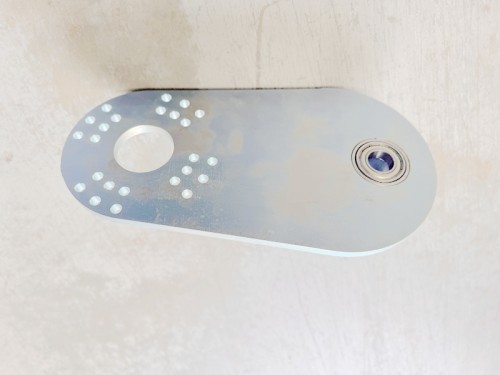

1 × Mounting/backing plate

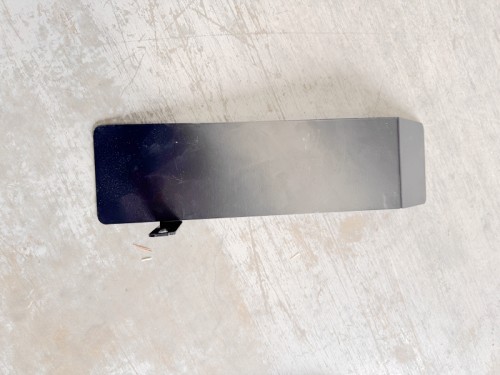

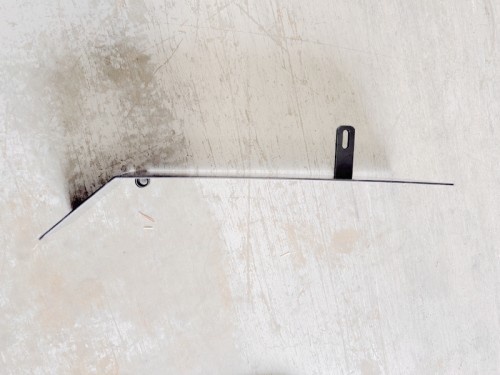

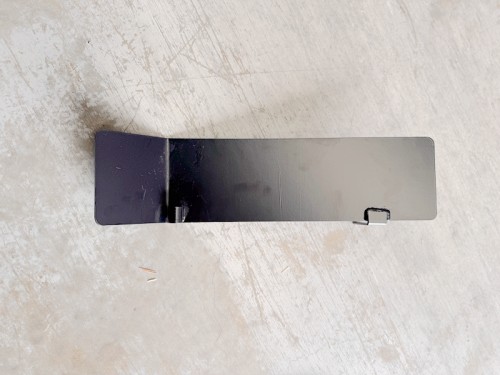

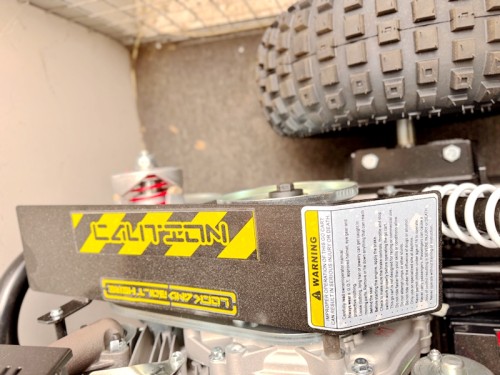

1 × Protective cover
All necessary bolts, nuts, washers, and key

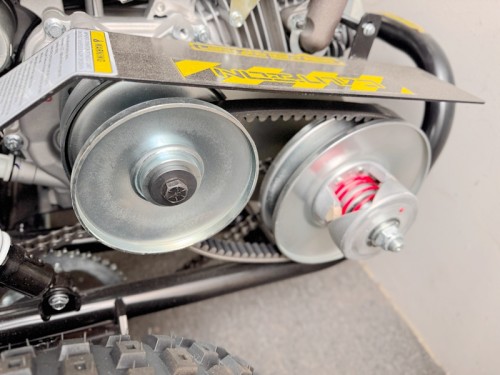

? Installation Guide

1. Mount the driver clutch onto the engine output shaft (ensure the key fits).

2. Install the driven pulley on the jackshaft.

3. Fit and align the V-belt between the pulleys.

4. Check alignment and belt tension.

5. Secure all bolts and test the converter at idle before full-speed operation.

Note: Belt should not move at idle. Adjust idle speed if necessary.

? Maintenance

• Keep the converter clean and dry.

• Do NOT oil or grease the pulleys or belt.

• Regularly check belt wear and replace if slipping.

• Ensure proper alignment for smooth engagement.

⚠️ Important Safety Notes

• Do NOT run the engine without the belt installed.

• Avoid contact with hot converter components after use.

• Always disconnect the spark plug before servicing.

? Specifications
