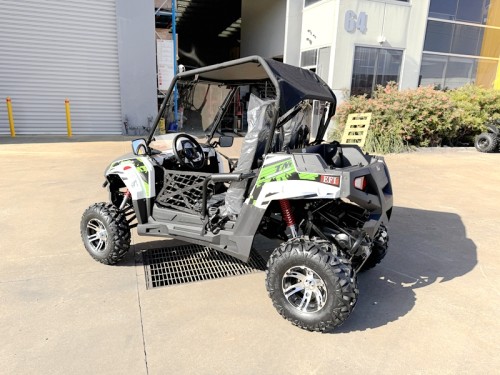

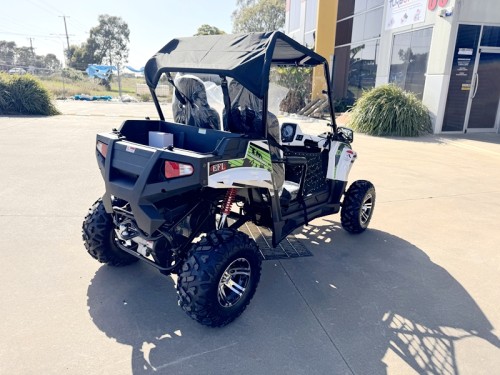

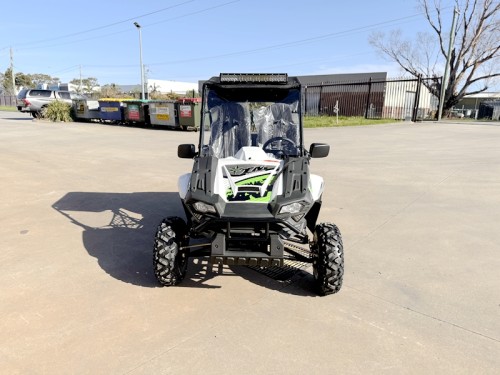

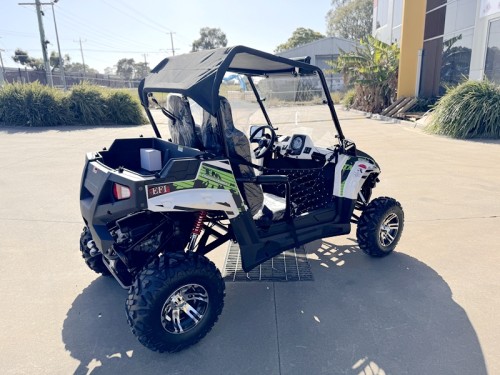

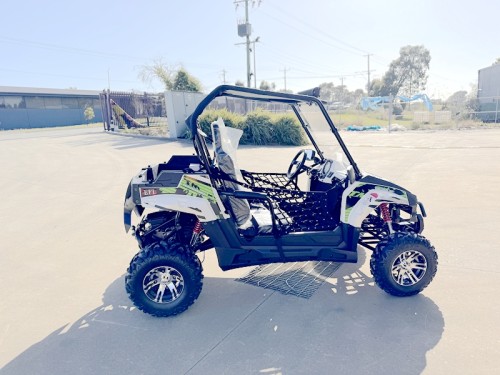

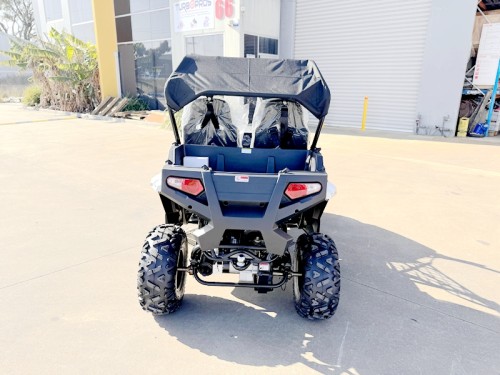

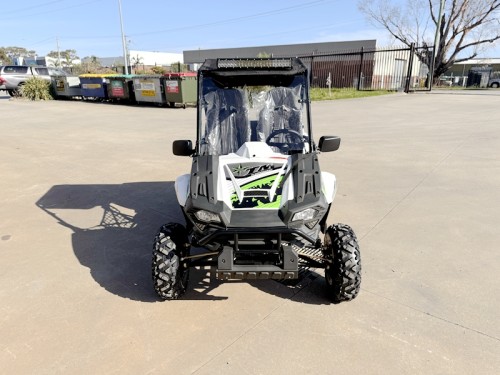

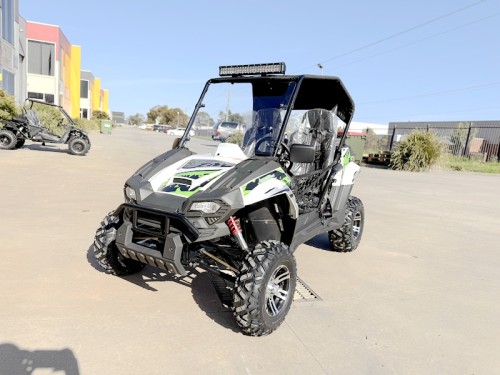

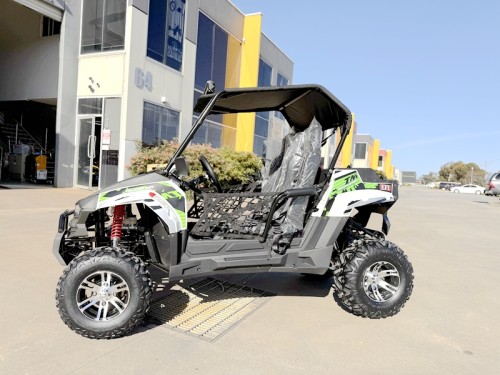

UTV CHALLENGER 200EX – 200CC

Features

• 200cc air-cooled engine (EPA compliant)

• Electronic Fuel Injection (EFI – not a carburetor system)

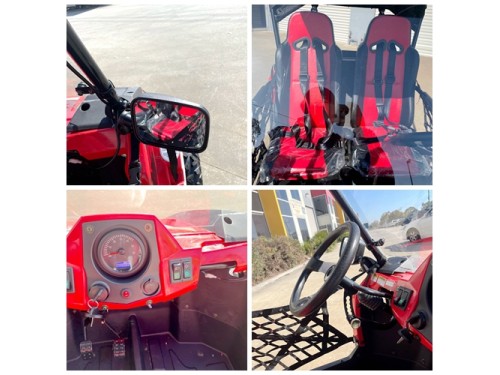

• Adjustable padded driver’s seat with 4-point safety harness

• Adjustable steering wheel (low–high) and adjustable pinion rack controls

• Hydraulic front and rear disc brakes

• Electric key start with kill switch

• Automatic transmission with reverse gear

• Digital dashboard / LED headlights / Light bar / Indicators / Horn

• Adjustable speed governor (located behind the pedal)

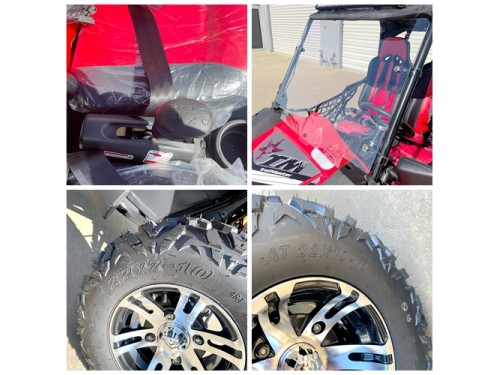

• 10-inch knobby tyres with alloy rims

• Double A-arm independent suspension

• Ball joint independent rear suspension

• 2WD – rear chain drive

• Front bull bar / Luggage rack / Tow bar / Windscreen / Adjustable rear-view mirrors

• Side safety nets and bikini sunshade top

• Front steel bumper

• Sunshade canopy

• Trailer hitch

• Parking brake

• Ergonomic steering wheel

• Individual sport seats

• Large rear utility cab

• Windscreen

Available Colours: Blue, Red, White (please check availability).

Specifications

• Dimensions (L×W×H): 2500 × 1260 × 1600 mm

• Packing size (L×W×H): 2300 × 1330 × 880 mm

• Net/Gross Weight: 300 kg / 335 kg

• Max Loading: 247 kg

• Front wheel centre distance: 1080 mm

• Rear wheel centre distance: 985 mm

• Ground Clearance: 160 mm

• Max Speed: 60 km/h

• Engine Model: 161QMK-A – 4-stroke, single cylinder

• Displacement: 200cc

• Bore × Stroke: 61 mm × 57.8 mm

• Compression Ratio: 8.8:1

• Fuel System: EFI

• Power Output: 8 kW / 7500 RPM (14 hp)

• Torque: 15 N·m / 5000 RPM

• Ignition: Battery ignition

• Start Mode: Electric start

• Lubrication: Splash type

• Spark Plug: C7HSA

• Engine Oil: SAE 10W/40

• Fuel Tank Capacity: 8 L

• Transmission: CVT

• Gearbox: Built-in reverse

• Clutch: Automatic

• Battery: YTX12-BS 12V 10AH

• Fuse: 15A

• Tyres: Front – 22×7-10 / Rear – 22×10-10 (with alloy rims)

• Tyre Pressure: 15 psi

• Front Suspension: Double A-arm independent suspension

• Rear Suspension: Rear axle with double A-arm & twin shock absorbers

• Drive System: Rear wheel chain drive

• Climbing Ability: 15–20°

• Max Rear Cab Load: 100 kg

? Shipping Information

Simply send us your postcode/suburb, and we’ll provide the best shipping rate.

• Most orders are shipped to your local depot for easy collection.

• Home delivery is available for an additional fee.

? Assembly Information

Your buggy is shipped in a sturdy crate and arrives 95% pre-assembled. Final assembly is required before use.

Customer must:

1. Uncrate the vehicle

2. Complete initial setup

3. Perform engine oil service

4. Check and adjust all systems, throttle, and brakes

5. Tighten all bolts and nuts

6. Perform break-in after the first hour of operation (by your mechanic, at your expense)

? Optional Assembly Service – Available for local pickup customers for $300. Please request in advance.

? Warranty Information

• Manufacturer’s warranty covers parts only — labour is not included.

• Any damaged or missing items upon delivery will be replaced.

• Warranty does not cover repairs or damage caused by operation or misuse.

Questions please call : 03-9706 6761 or email info@mjmotor.com.au
