Features:
- 163cc/5.5hp OHV engine

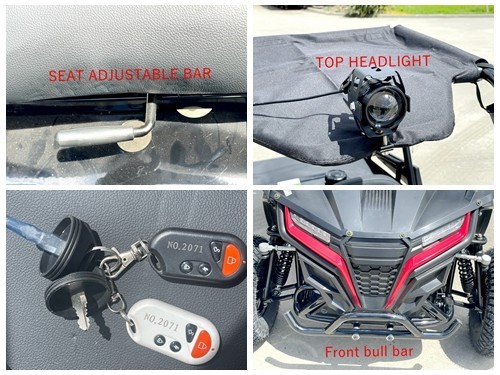

- Adjustable seat

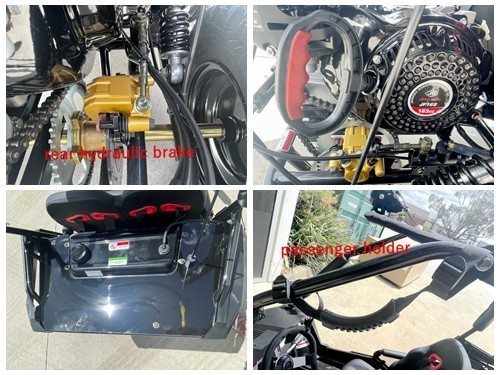

- Hydraulic rear disc brake
- Electric key start and pull start
- Auto with the reverse gear
- Led headlights+top headlight

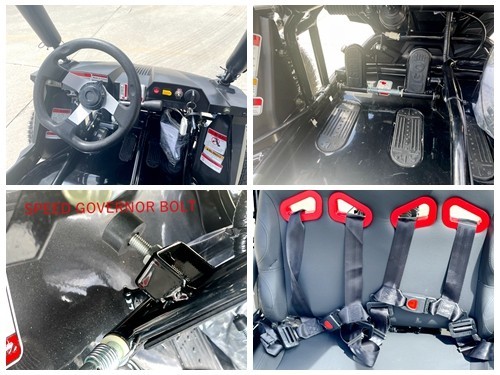

- Adjustable speed governor behind the pedal
- Adjustable seat
- Immobiliser (Remote start, Emergency Kill switch, Alarm)
- Horn
- TAV30 Series Torque converter
- Reverse gearbox
- 3 Points seat belts
- Front bull bar
- knobby wheel tires.
Color: PINKSpecifications

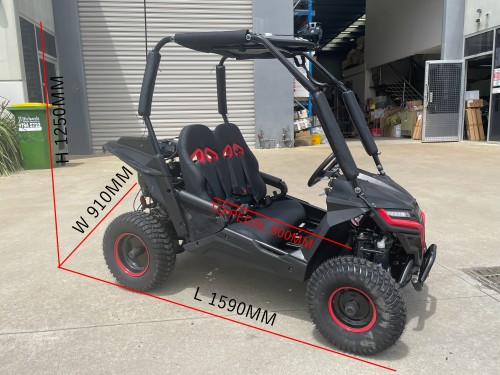

Buggy dimensions: 1590x910x1250mm LxWxH
Packing size: 1500mm(l) x 800mm(w) x 530mm(h)
Net/gross weight: 120kgs/160kgs
Max loading: 100kgs
Wheelbase 111omm
Pedal to seat back: 80mm(adjustable distance:10cm)
Min ground clearance: 90mm
Max speed: 45km/h
Climbing ability: 12 degree
Engine model: JF168 4-stroke ,air-cool,single cylinder
Displacement: 163cc
Bore x Stroke: 68mm x 45mm
Fuel supply method: fuel switch/gravity
Carburettor: JF168N.9.1C
Power: 3.2kw/3600RPM , 5.5HP
Ignition mode: transistor contactless ignition
Start mode: Pull and electric start
Immobiliser (Remote start, Emergency Kill switch, Alarm)
Lubrication mode: splash
Spark plug model: F7TC/F7RTC/0.6-0.7MM
crankcase lubrication oil model: SAE 10W/40
Fuel tank capacity: 3.6L
Transmission mode: CVT
Gearbox: external reverse
Clutch: Auto
Battery model: YTX12-BS 12V10AH
Engine oil 0.6L

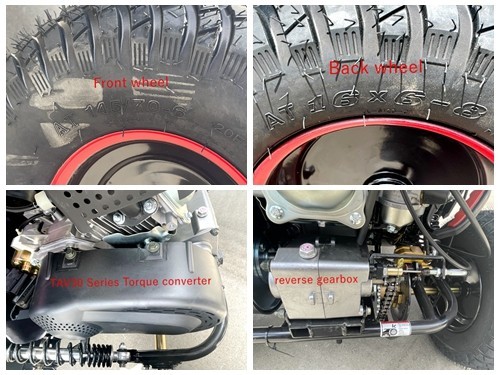

Front wheels: 145/70-6 @15psi
Rear wheels: 16x6-8 @15psi
Front suspension method: double A-arm independent suspension
Rear suspension: Spring over shock with 2.0"of travel
Driven mode: rear wheel driven
Shipping cost:
Please send me your postcode/suburb then we will quote a shipping rate asap. Most items will be sent to your local depot. Home delivery will cause an extra fee.
Assembly:
This buggy comes in a crate, assembly is requested. Please install wheels/mudguards/seats/top roll cage, etc.
